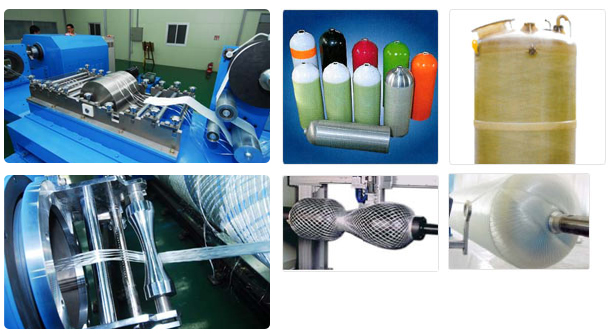

Filament winding Advantage
- Increased Strength (fiber processed under tension)
-
High Fiber Content
-
Highly Automated
-
Consistent Quality
-
Low Labor Required
-
High Strength
Application
- High Pressure Air Tank used paint ball, emergency care, fire fighting
- Fuel tank used hydrogen, CNG & LPG
- High Pressure GRP Pipe
- Pressure and storage Vessel
- Coupling and joint fitting
- Air craft and space
- Industrial parts
- Military parts |
 |
Description of Filament Winding Machine
- Fiber Creel - With or Without electric tension control system
- Spindle unit - Single or Multi
- Carrier unit with Resin impregnating bath
- Cross Feeder
- Rotation Eye
- Elevator
- Tilter
- Tail Stocks and rail
- Control consol
- Operating handle
- Mandrel |
|
Series
|
D-FWE Series
|
D-FWC Series
|
Winding capacity
Diameter (cm)
Length (M) |
10 ~ 500
0.5 ~ 18
|
10 ~ 400
0.3 ~ 15
|
| Winding Angle capacity |
0 ~ 75
|
0 ~ 90
|
| Number of Winding spindle |
single or multi spindle
|
single or multi spindle
|
| Number of control axis |
2 ~ 3
|
2 ~ 5
|
Spindle
- Clamping
- Mandrel Capacity (Kg)
- Mandrel Speed (rpm)) |
gear transfer
~ 15,000
5 ~ 200
|
3 Jaw chuck
~ 8,000
20 ~ 200
|
Carriage
- Traveling stroke (M)
- Speed (mm/sec) |
1 ~ 18
1,000 |
0.5 ~ 15
1,000 |
Other Movement
- Speed (mm/sec) |
Manual |
1,000 |
|
Application
|
Used for General parts
- Industrial parts
- Pipe and tube
- Vessel
- Scrubber |
Used for Precision parts
- Pressure Vessel
- Pipe and fittings
- Joint sleeve
- "T" and "L" piece
- Industrial parts
- Air craft and space parts
- Fuel shells and nozzles
- Military parts
- Non-cylindrical and asymmetrical geometry's |
|
| |
|
