Specification
All Pulman Pultrusion machines are include
- Touch screen controll system
- Software program designed by Dasan Engineering
- Heated mold mounting die
-
Blade cut-off saw with parts clamp
- Delivery table
- Installation and start-up support |
Pultrusion Advantages
- Increased Strength (fiber processed under tension)
- High Fiber Content
- Highly Automated
- Consistent Quality
- Mass Production
- Low Labor Required
- Low Cost |

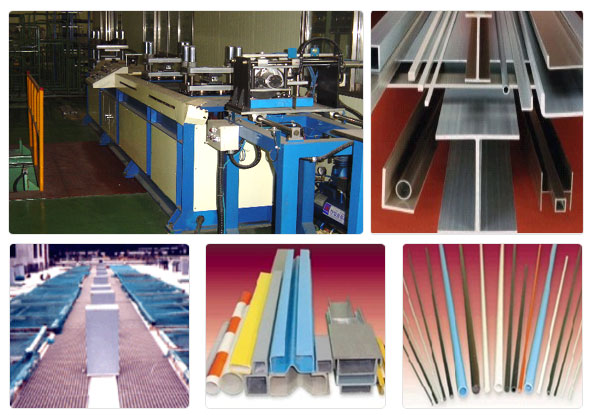

tandard Profiles
- Round rods
- Round and shape tubes
- Strip/Bar
- Box sections
- Channels
- Angles
- Other Profiles |
Application
- Air craft structure and parts
- Blades for wind turbines
- Automotive parts and components
- Recreational sports equipments
- Industrial parts |
Description of Pultruder
- Fiber Creel
- Winding unit
- Resin imprgnating bath
- Forming dies
- Heated metal die
- Puller (Drive) unit
- Cut-off saw |
| Pulman Caterpiller series |
|
Model
|
PMC09-0806
|
PMC15-1604
|
PMC20-2410
|
PMC25-3010
|
PMC30-4012
|
| Profile dimension (mm) |
200 x 150
|
400 x 200
|
600 x 250
|
750 x 250
|
1000 x 300
|
| Machine length (m) |
14.2
|
13.5
|
15.2
|
16.6
|
16.6
|
| Machine width (cm) |
90
|
100
|
130
|
150
|
175
|
| Machine weight (Kg) |
5,500
|
6,000
|
6,500
|
7,400
|
8,200
|
| Center height (cm) |
108
|
108
|
108
|
108
|
108
|
| Pull force (Kg) |
9,000
|
15,000
|
20,000
|
25,000
|
30,000
|
| Clamp force (Kg) |
9,000
|
15,000
|
20,000
|
25,000
|
30,000
|
| Clamping length (cm) |
100
|
130
|
150
|
175
|
200
|
| Speed Range (cm/min) |
15 ~ 200
|
15 ~ 200
|
15 ~ 200
|
15 ~ 200
|
15 ~ 200
|
|
| Pulman Recriprocating series |
|
Model
|
PMR10-0806
|
PMR15-1604
|
PMR20-2410
|
PMR25-3010
|
PMR35-4012
|
| Profile dimension (mm) |
200 x 150
|
400 x 200
|
600 x 250
|
750 x 250
|
1000 x 300
|
| Machine length (m) |
14.2
|
14.5
|
17.4
|
18.5
|
18.5
|
| Machine width (cm) |
90
|
115
|
135
|
160
|
180
|
| Machine weight (Kg) |
5,500
|
6,000
|
6,500
|
7,400
|
8,200
|
| Center height (cm) |
108
|
108
|
108
|
108
|
108
|
| Pull force (Kg) |
10,000
|
15,000
|
20,000 (25,000)
|
25,000 (30,000)
|
32,000
|
| Clamp force (Kg) |
10,000
|
15,000
|
20,000 (25,000)
|
30,000 (38,000)
|
32,000
|
| Puller Storoke (cm) |
75
|
75
|
75
|
75
|
75
|
| Clamping length (cm) |
50
|
70
|
70
|
80
|
80
|
| Speed Range (cm/min) |
2 ~ 300
|
2 ~ 300
|
2 ~ 300
|
2 ~ 300
|
2 ~ 300
|
|
 |
| |
|
